Basement images and videos

Walkthrough videos, the annotated floor plan, still views of the 3D model, and generated floor textures.

Videos

Supplied reference videos may show the earlier layout. The current model and stills below show the open gym extending 5 feet behind the existing post, with the prefab in the northeast corner, treadmill facing the TV in the rear-left gym and an arched mirror beside the yoga mat, centered dumbbells and TV, and a proposed unchilled bottle filler. The lounge shows both existing posts and the loveseat perpendicular to the TV wall between that wall and the lounge post.

Basement Walk Through
IMG 0156

Images

Straight-down floor plan of the complete basement model showing rooms, gym, sauna, lounge and furniture
Top-down floor plan · model view (approximate) · Download PNG

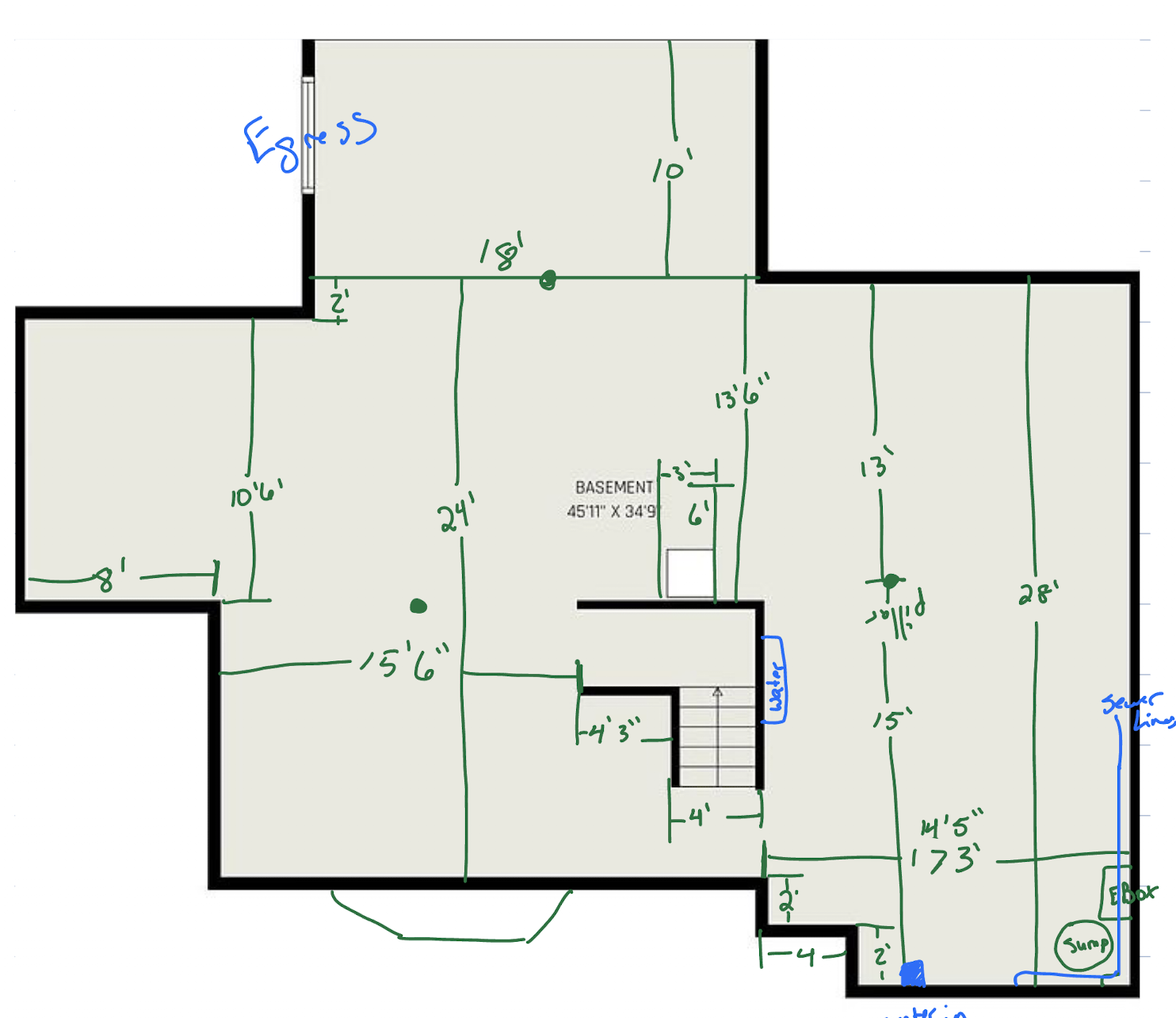

User-provided basement floor plan with handwritten dimensions and egress, water, sewer, electrical box and sump annotations
Annotated basement floor plan — supplied reference

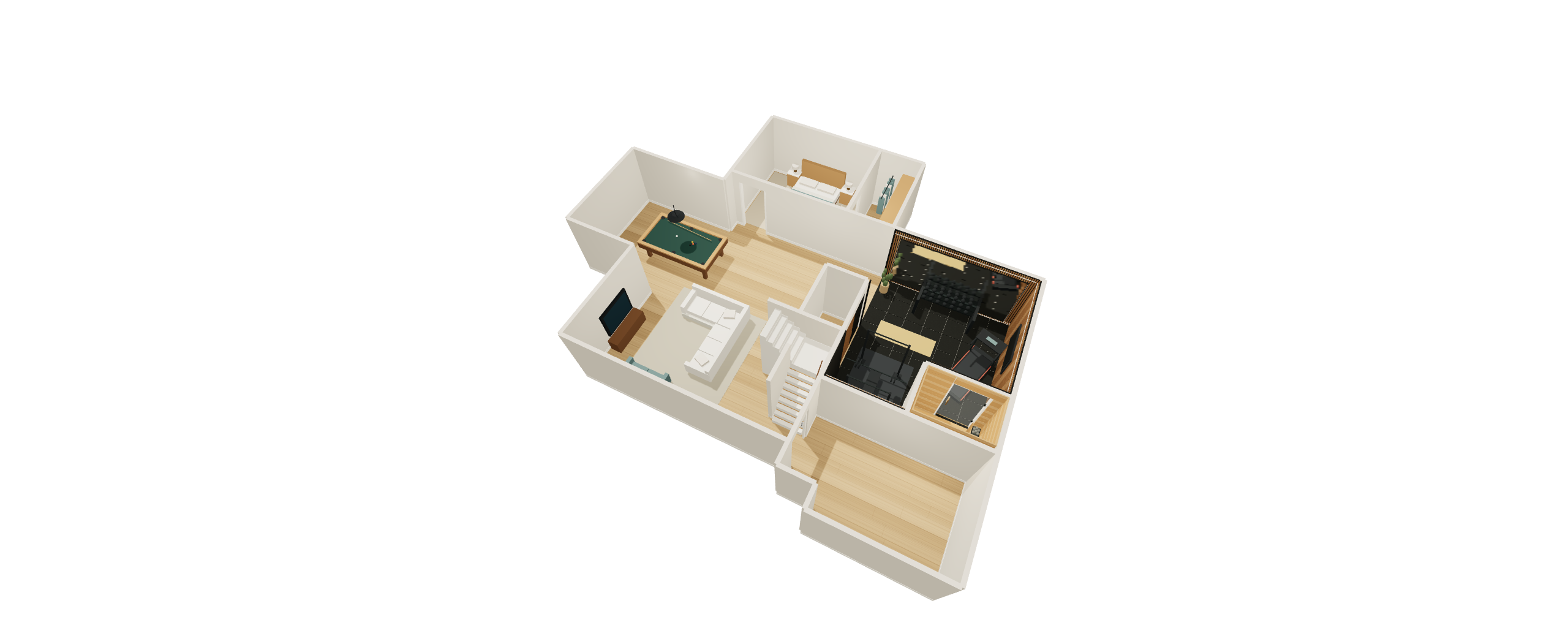

Overhead view of the complete basement model
Basement overview

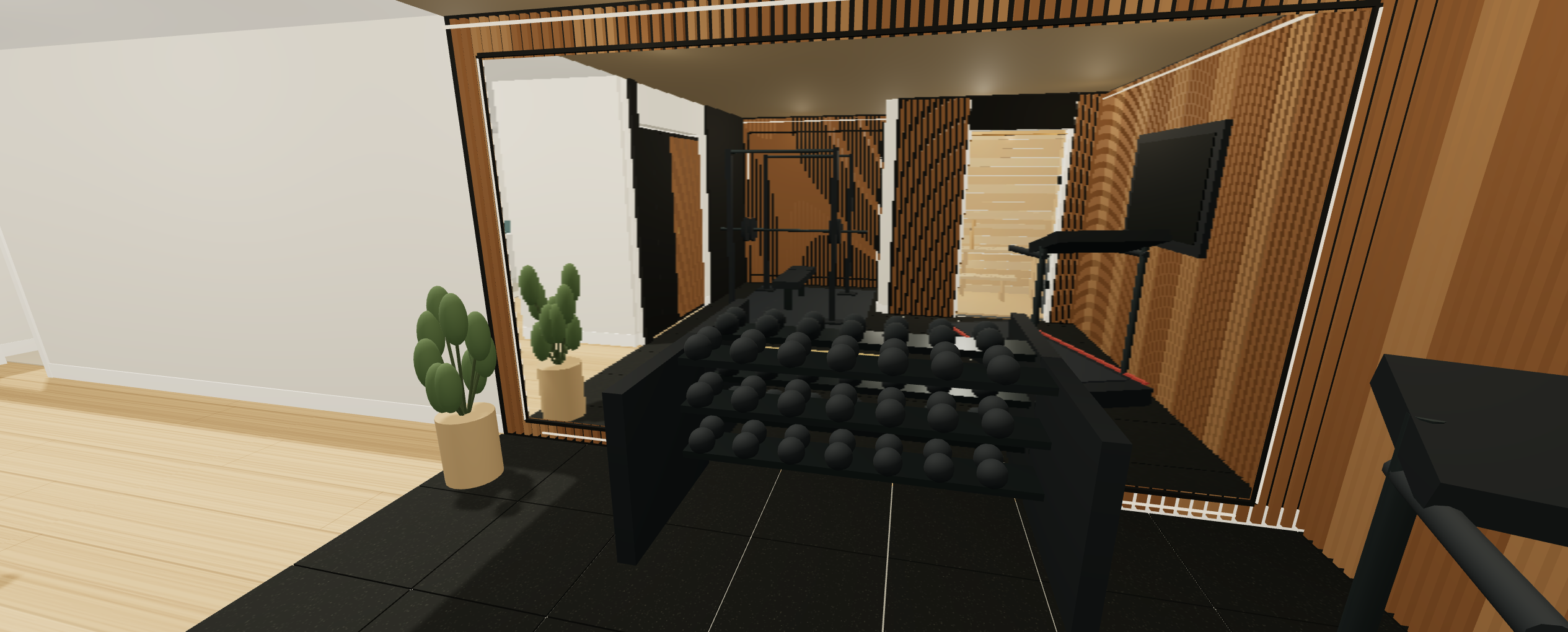

Gym with warm off-white TV wall and wood slats only on the right accent wall
Gym
Squat rack and mirror in the right-hand nine by five foot gym recess
Squat rack · right recess · approximately 9′ × 5′
Freestanding San Marino Elite unit in the open gym
San Marino Elite · 47″ W × 42″ D × 75″ H · schematic model

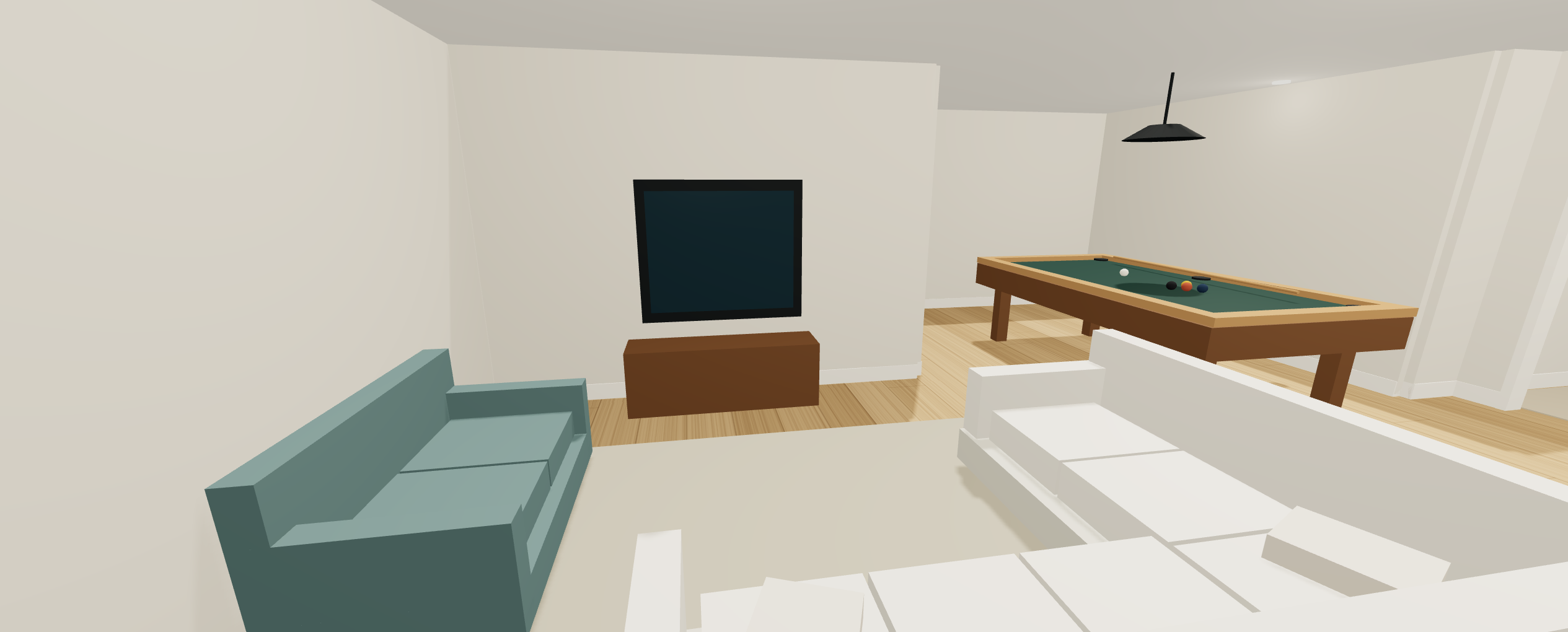

Basement lounge and seating
Lounge
Treadmill in the former prefab location
Treadmill
Proposed recessed unchilled bottle filler on the right wall, aligned with the gym post, away from the utility bifolds
Unchilled bottle filler · proposed
Arched mirror · right wall beside the yoga mat
Arched mirror · right wall beside the yoga mat
Gym · overheads off, warm baseboard LEDs on
Gym · overheads off, warm baseboard LEDs on
Lounge · warm downward baseboard lighting
Lounge · warm downward baseboard lighting
Stair treads · concealed lighting beneath each nosing
Stair treads · concealed lighting beneath each nosing
Stair treads · warm LEDs with overheads off
Stair treads · warm LEDs with overheads off
Generated oak plank texture
Oak texture
Generated speckled rubber floor texture
Rubber texture
